一、背景介绍

在之前的公司算是第一批使用oceanbase的互联网公司了, 由于之前做过linux运维, 深入思考过企业入口的负载均衡问题, 通过nginx、keepalived、域名实现双活、多活，能彻底解决单点故障、负载不均衡、扩展性差等问题。之前疫情原因，当时业务有10倍增长，对大并发、横向扩展会比较关注。通过使用现有开源组件组合，来媲美商业负载均衡，最终可以免维护、甚至遗忘负载均衡和高可用的存在。

开源组件:

obproxy（tcp、udp、http负载均衡换成nginx、haproxy）
keepalived
dns域名解析
三个vip地址

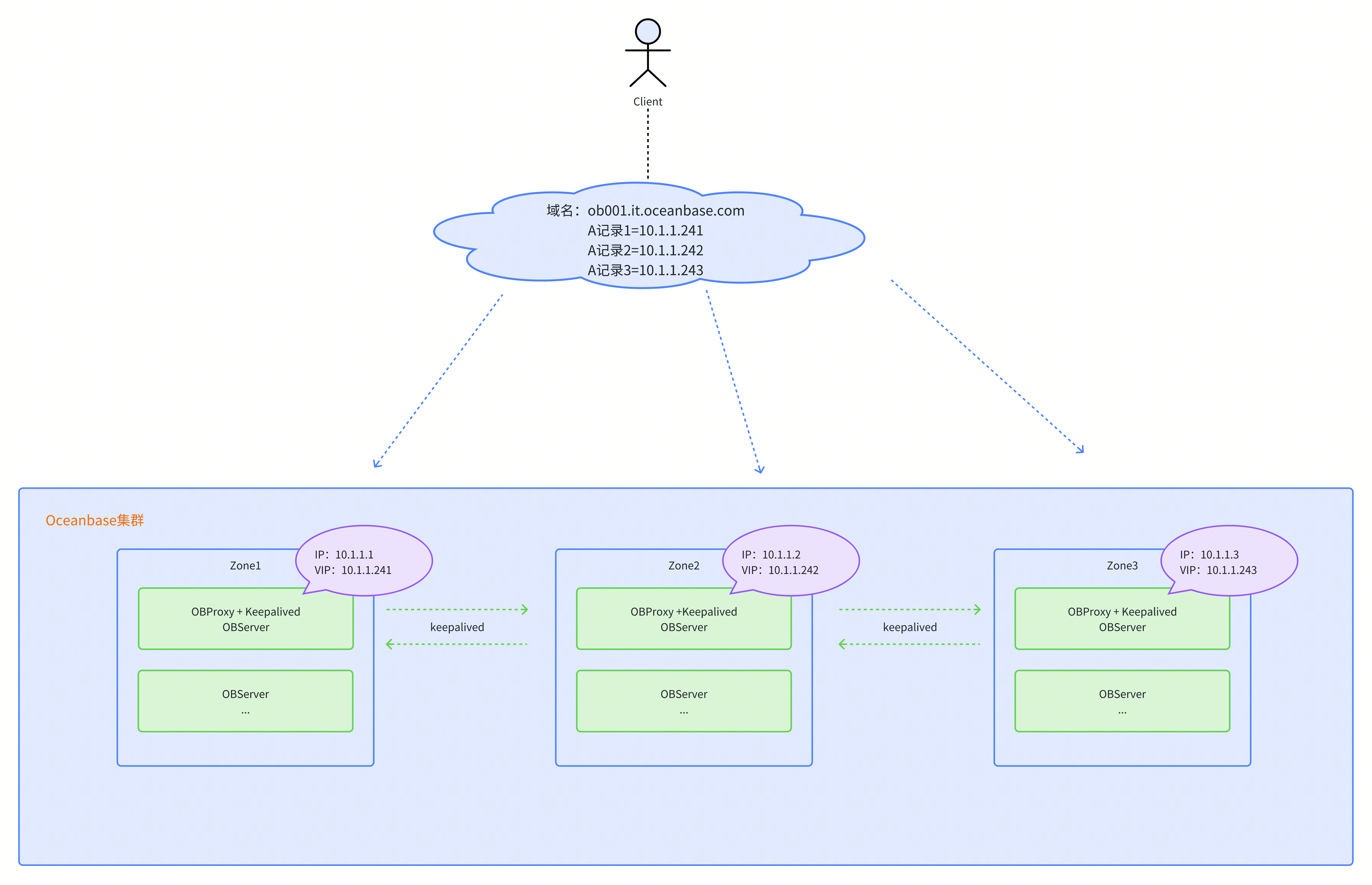

二、拓扑介绍

1736230356

三、配置详情

oceanbase、obproxy、安装省略
安装keepalived

    yum install keepalived   # centos
    apt install keepalived   # ubuntu

3. 主机10.1.1.1配置文件

/etc/keepalived/checkobproxy.sh

#!/bin/bash
if [ `ps -c obproxy --no-header |wc -l` -eq 0 ]; then
   sleep 1
   if [ $(ps -c obproxy --no-header | wc -l) -eq 0 ]; then
       exit 1
   fi
fi

/etc/keepalived/keepalived.conf

# configuration file for keepalived
global_defs {
   notification_email {
     willian@xx.com
   }
   router_id lvs_devel
   vrrp_skip_check_adv_addr
   vrrp_garp_interval 0
   vrrp_gna_interval 0
   script_user root
   enable_script_security
}
vrrp_script check_obproxy {
    script "/etc/keepalived/checkobproxy.sh"
    interval 2
    weight -50
}
vrrp_instance vi_1 {
    # nopreempt
    state backup
    interface bond1
    virtual_router_id 1
    priority 100
    advert_int 1
    authentication {
        auth_type pass
        auth_pass wukong
    }
    unicast_src_ip 10.1.1.1
    unicast_peer {
        10.1.1.2
        10.1.1.3
    }
    virtual_ipaddress {
        10.1.1.241/24
    }
    track_script {
        check_obproxy
    }
}
vrrp_instance vi_2 {
    state backup
    interface bond1
    virtual_router_id 2
    priority 60
    advert_int 1
    authentication {
        auth_type pass
        auth_pass wukong
    }
    unicast_src_ip 10.1.1.1
    unicast_peer {
        10.1.1.2
        10.1.1.3
    }
    virtual_ipaddress {
        10.1.1.242/24
    }
    track_script {
        check_obproxy
    }
}
vrrp_instance vi_3 {
    state backup
    interface bond1
    virtual_router_id 3
    priority 80
    advert_int 1
    authentication {
        auth_type pass
        auth_pass wukong
    }
    unicast_src_ip 10.1.1.1
    unicast_peer {
        10.1.1.2
        10.1.1.3
    }
    virtual_ipaddress {
        10.1.1.243/24
    }
    track_script {
        check_obproxy
    }
}

4. 主机10.1.1.2配置文件

/etc/keepalived/checkobproxy.sh

#!/bin/bash
if [ `ps -c obproxy --no-header |wc -l` -eq 0 ]; then
   sleep 1
   if [ $(ps -c obproxy --no-header | wc -l) -eq 0 ]; then
       exit 1
   fi
fi

/etc/keepalived/keepalived.conf

# configuration file for keepalived
global_defs {
   notification_email {
     willian@xx.com
   }
   router_id lvs_devel
   vrrp_skip_check_adv_addr
   vrrp_garp_interval 0
   vrrp_gna_interval 0
   script_user root
   enable_script_security
}
vrrp_script check_obproxy {
    script "/etc/keepalived/checkobproxy.sh"
    interval 2
    weight -50
}
vrrp_instance vi_1 {
    state backup
    interface bond1
    virtual_router_id 1
    priority 80
    advert_int 1
    authentication {
        auth_type pass
        auth_pass wukong
    }
    unicast_src_ip 10.1.1.2
    unicast_peer {
        10.1.1.1
        10.1.1.3
    }
    virtual_ipaddress {
        10.1.1.241/24
    }
    track_script {
        check_obproxy
    }
}
vrrp_instance vi_2 {
    # nopreempt
    state backup
    interface bond1
    virtual_router_id 2
    priority 100
    advert_int 1
    authentication {
        auth_type pass
        auth_pass wukong
    }
    unicast_src_ip 10.1.1.2
    unicast_peer {
        10.1.1.1
        10.1.1.3
    }
    virtual_ipaddress {
        10.1.1.242/24
    }
    track_script {
        check_obproxy
    }
}
vrrp_instance vi_3 {
    state backup
    interface bond1
    virtual_router_id 3
    priority 60
    advert_int 1
    authentication {
        auth_type pass
        auth_pass wukong
    }
    unicast_src_ip 10.1.1.2
    unicast_peer {
        10.1.1.1
        10.1.1.3
    }
    virtual_ipaddress {
        10.1.1.243/24
    }
    track_script {
        check_obproxy
    }
}

5. 主机10.1.1.3配置文件

/etc/keepalived/checkobproxy.sh

#!/bin/bash
if [ `ps -c obproxy --no-header |wc -l` -eq 0 ]; then
   sleep 1
   if [ $(ps -c obproxy --no-header | wc -l) -eq 0 ]; then
       exit 1
   fi
fi

/etc/keepalived/keepalived.conf

# configuration file for keepalived
global_defs {
   notification_email {
     willian@xx.com
   }
   router_id lvs_devel
   vrrp_skip_check_adv_addr
   vrrp_garp_interval 0
   vrrp_gna_interval 0
   script_user root
   enable_script_security
}
vrrp_script check_obproxy {
    script "/etc/keepalived/checkobproxy.sh"
    interval 2
    weight -50
}
vrrp_instance vi_1 {
    state backup
    interface bond1
    virtual_router_id 1
    priority 60
    advert_int 1
    authentication {
        auth_type pass
        auth_pass wukong
    }
    unicast_src_ip 10.1.1.3
    unicast_peer {
        10.1.1.1
        10.1.1.2
    }
    virtual_ipaddress {
        10.1.1.241/24
    }
    track_script {
        check_obproxy
    }
}
vrrp_instance vi_2 {
    state backup
    interface bond1
    virtual_router_id 2
    priority 80
    advert_int 1
    authentication {
        auth_type pass
        auth_pass wukong
    }
    unicast_src_ip 10.1.1.3
    unicast_peer {
        10.1.1.1
        10.1.1.2
    }
    virtual_ipaddress {
        10.1.1.242/24
    }
    track_script {
        check_obproxy
    }
}
vrrp_instance vi_3 {
    # nopreempt
    state backup
    interface bond1
    virtual_router_id 3
    priority 100
    advert_int 1
    authentication {
        auth_type pass
        auth_pass wukong
    }
    unicast_src_ip 10.1.1.3
    unicast_peer {
        10.1.1.1
        10.1.1.2
    }
    virtual_ipaddress {
        10.1.1.243/24
    }
    track_script {
        check_obproxy
    }
}
